Technix Pell Lux
A modern pellet boiler for houses and utility buildings. Easy to operate, compliant with Class 5 and Ecodesign requirements, available in a power range from 10 to 48 kW.
Product description
Technix PELL LUX is an ecological and modern pellet boiler, available in a power range from 10 kW to 48 kW. It is designed for heating single-family houses, utility buildings and larger facilities with an area of approximately 40 to 480 m².
The boiler construction has been designed for convenient everyday use. The automatic fuel feeder, Technix SV300 burner with a step feeder and Argos Plus Pellet controller help maintain a stable combustion process and reduce the number of manual tasks.
The boiler meets the requirements of the PN-EN 303-5:2021-09 standard and the Ecodesign 2009/125/EC directive. This means high energy efficiency, low emissions and the possibility of using the unit in modern heating systems.
Technix PELL LUX is equipped with a ceramic igniter, air blower fan, pellet hopper and a clear control system. As a result, operation is simple and the user can conveniently control the boiler throughout the heating season.
A solid heat exchanger, good insulation and well-planned access to cleaning points make maintenance easier and support long service life. The heat exchanger is covered by a 5-year manufacturer’s warranty.
Technical data
Key boiler parameters in a simple, readable layout.
| Power range | 10-48 kW |
| Heating area | 40-480 m² |
| Primary fuel | pellet |
| Burner | Technix SV300, side-combustion burner with step feeder |
| Controller | Argos Plus Pellet |
| Energy efficiency | over 90% |
| Emission standard | PN-EN 303-5:2021-09, Class 5 |
| Ecodesign | compliant with Directive 2009/125/EC |
| Warranty | 5 years on the heat exchanger |

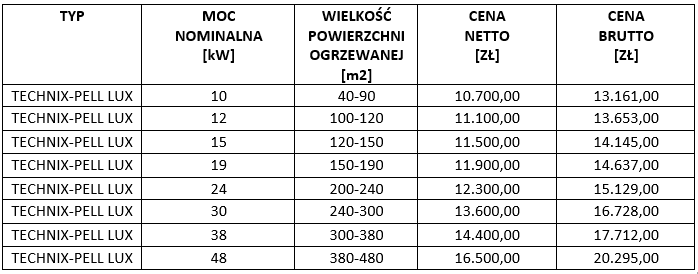

Boiler power selection
Approximate power selection based on the heated area. The final selection should be confirmed according to building insulation and heat demand.
| Nominal power | Heated area | Application |
|---|---|---|
| 10 kW | 40-90 m² | small houses and well-insulated buildings |
| 12 kW | 100-120 m² | smaller single-family houses |
| 15 kW | 120-150 m² | typical residential houses |
| 19 kW | 150-190 m² | larger single-family houses |
| 24 kW | 200-240 m² | larger residential buildings |
| 30 kW | 240-300 m² | large houses and utility buildings |
| 38 kW | 300-380 m² | larger heating installations |
| 48 kW | 380-480 m² | the largest buildings in this series |
The values above are approximate. Boiler selection depends on factors such as building insulation, heating system type and domestic hot water demand.
Standard equipment
- Technix PELL LUX boiler with heat exchanger insulation
- pellet hopper
- Technix SV300 burner with feeder
- Argos Plus Pellet controller
- air blower fan
- ash drawer
- set of cleaning tools
- documentation and CE, Class 5, Ecodesign certificates
Features and benefits
- automatic boiler operation and convenient control
- ceramic igniter for automatic ignition
- step feeder improving combustion safety
- compact heat exchanger with easy access for cleaning
- low emissions and compliance with Ecodesign requirements
- solid construction using high-quality materials
